Spending over a thousand dollars on a GPU and then worrying whether the power connector will melt is not a normal thing to accept. Yet here we are.

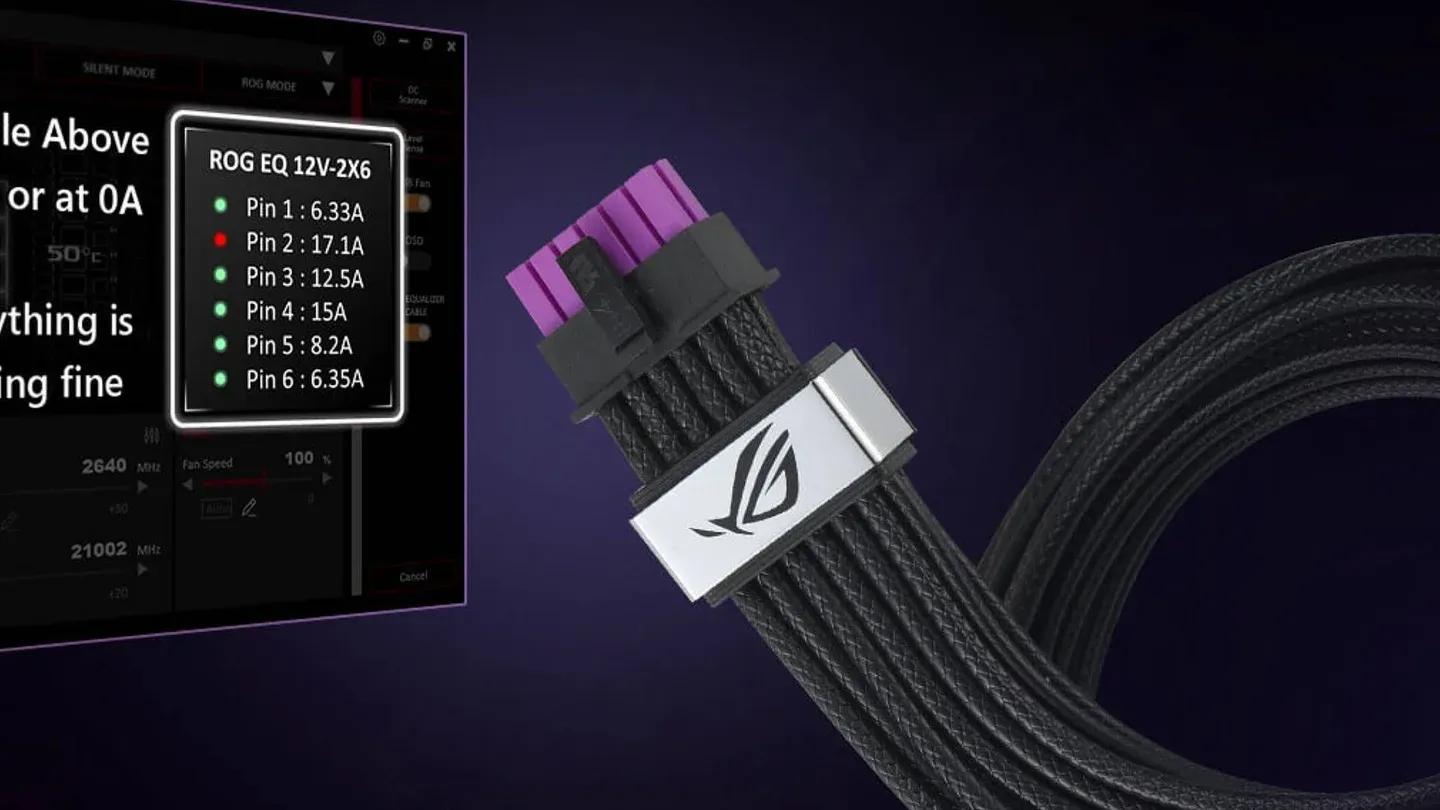

Asus has announced the ROG Equalizer, a new 12V-2x6 PCIe power cable designed specifically to stop high-end graphics cards from turning their power ports into something resembling a campfire. The cable expands per-pin current capacity from 9.2 amps all the way up to 17A, distributes load more evenly across all six pins, and features a solid copper core with tin shielding and a protective etched sheath. The goal is straightforward: keep 600W cards running cool without the connector becoming a liability.
How a cable became a necessity for RTX owners
The melting connector problem traces back to Nvidia's decision to introduce the 12VHPWR connector with the RTX 4090, replacing the familiar 8-pin standard that had worked without drama for years. That connector, and its successor the 12V-2x6, pushed significantly more wattage through a smaller contact surface. Reports of scorched ports and deformed plugs followed, particularly on flagship cards like the RTX 4090 and more recently the RTX 5090 and RTX 5080, where 600W power draws stress every component in the chain.
Here's the thing: AMD never made this switch. Cards like the RX 9070 still use the older 8-pin connector configuration, which means this is almost entirely a GeForce problem. If you're running a high-end Nvidia GPU, the ROG Equalizer is aimed squarely at you.
danger
Asus notes that ROG Equalizer compatibility with third-party GPUs depends on socket quality. Proper insertion with a firm click is still required, regardless of the cable used.
What the ROG Equalizer actually does differently
The core engineering change is current balancing. Standard 12V-2x6 cables allow uneven current draw across pins, which concentrates heat at specific contact points. Asus says the ROG Equalizer forces balanced delivery from the PSU side, so no single pin is taking a disproportionate hit when the GPU demands full power.
The specs break down like this:
- Standard 12V-2x6 cable: 9.2A per pin
- ROG Equalizer: 17A per pin
- Max supported GPU power: 600W
- Construction: Solid copper core, tin shielding, etched protective sheath
That near-doubling of per-pin capacity gives the cable meaningful headroom. Rather than running near its thermal ceiling every time a GPU boosts, each pin operates well within safe limits.
Pricing and who gets it first
Asus hasn't confirmed a standalone retail price yet. The ROG Equalizer will ship bundled with the ROG Thor III and ROG Strix Platinum PSUs, and existing owners of those units will reportedly be able to purchase the cable separately at a discount.
The broader context here is hard to ignore. PC hardware prices are already under pressure from tariffs, component shortages, and GPU price hikes that have pushed flagship cards to genuinely painful price points. Asking people who just dropped serious money on an RTX 5090 to also factor in a specialty power cable to protect their investment is a frustrating position to be in, even if the cable itself is well-engineered.
What most players miss is that proper cable seating has always been part of the equation too. Asus's own guidance still emphasizes inserting the connector fully until it clicks, since a partially seated 12V-2x6 cable remains a fire risk regardless of how good the cable itself is.
